Specifications

Specifications

Drum Kits

40 Factory Presets, 128 User Presets and more than 900 instrument sounds.

Effects

4 independent effects blocks (Ambient Samples, Instrument Reverb, Room Reverb, Multi Effects), Pad Compressor and 3-Band Equalizer for each channel, separate 4-band EQ and Compressor for Master-, Headphone- and Monitor Outputs.

User Sample Import

128 Import Slots (WAV, max. length: 70 minutes mono, 35 minutes stereo)

Recorder

USB WAV Recorder (Stereo) directly onto the module / USB Stick, USB Audio Interface 6 Outputs / 2 Inputs freely definable routing

Display

2.7" OLED Display Black/White with 128*64px resolution

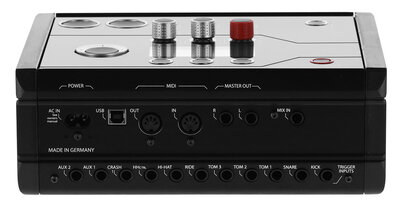

Connections

In- / Outputs

  • Trigger Inputs: 11x 6,3mm (1/4") TRS jack sockets
  • Master Out: 2x 6,3mm (1/4") TS jack socket
  • Headphones: 6,3mm (1/4") TRS jack
  • Mix Input: 6,3mm (1/4") TRS jack

  • MIDI (IN, OUT/THROUGH)
  • USB MIDI
  • USB Audio (2 IN / 6 OUT)
Connections

Trigger-Presets

Kicks

  • GEWA Kick 18inch
  • GEWA Kick 18 inch DP
  • GEWA Kick Pad
  • KD-140
  • KD-120
  • KD-9
  • KD-7
  • KT-10
  • KP100
  • KP65
  • KU100
  • RT30K

Pads

  • GEWA Snare 12inch
  • GEWA Snare 14inch
  • GEWA Tom 10inch
  • GEWA Tom 12inch
  • GEWA Tom 14inch
  • GEWA Pad 10inch
  • GEWA Pad 12inch
  • PD-128
  • PD-108
  • PD-125
  • PD-105
  • PDX-100
  • PD-85
  • PDX-8
  • PDX-6
  • PD-8
  • XP-120T
  • XP-120SN
  • XP100
  • XP80
  • XP70
  • TP70S
  • Mesh Pad 12
  • Mesh Pad 10
  • Mesh Pad 8
  • RT-30HR
  • BT-1

Cymbals

  • GEWA Crash 14inch
  • GEWA Ride 18inch
  • CY-8
  • CY-12C
  • CY-13R
  • CY-16R
  • CY-14C
  • PCY135
  • PCY155
  • PCY175
  • DMPad16Cymbal
  • aD-C18 3Way
  • aD-1x Crash

Hi-Hats

  • GEWA HH14
  • VH-10
  • VH-13
  • aD-C14HH
  • ProX HiHat
Trigger-Presets
